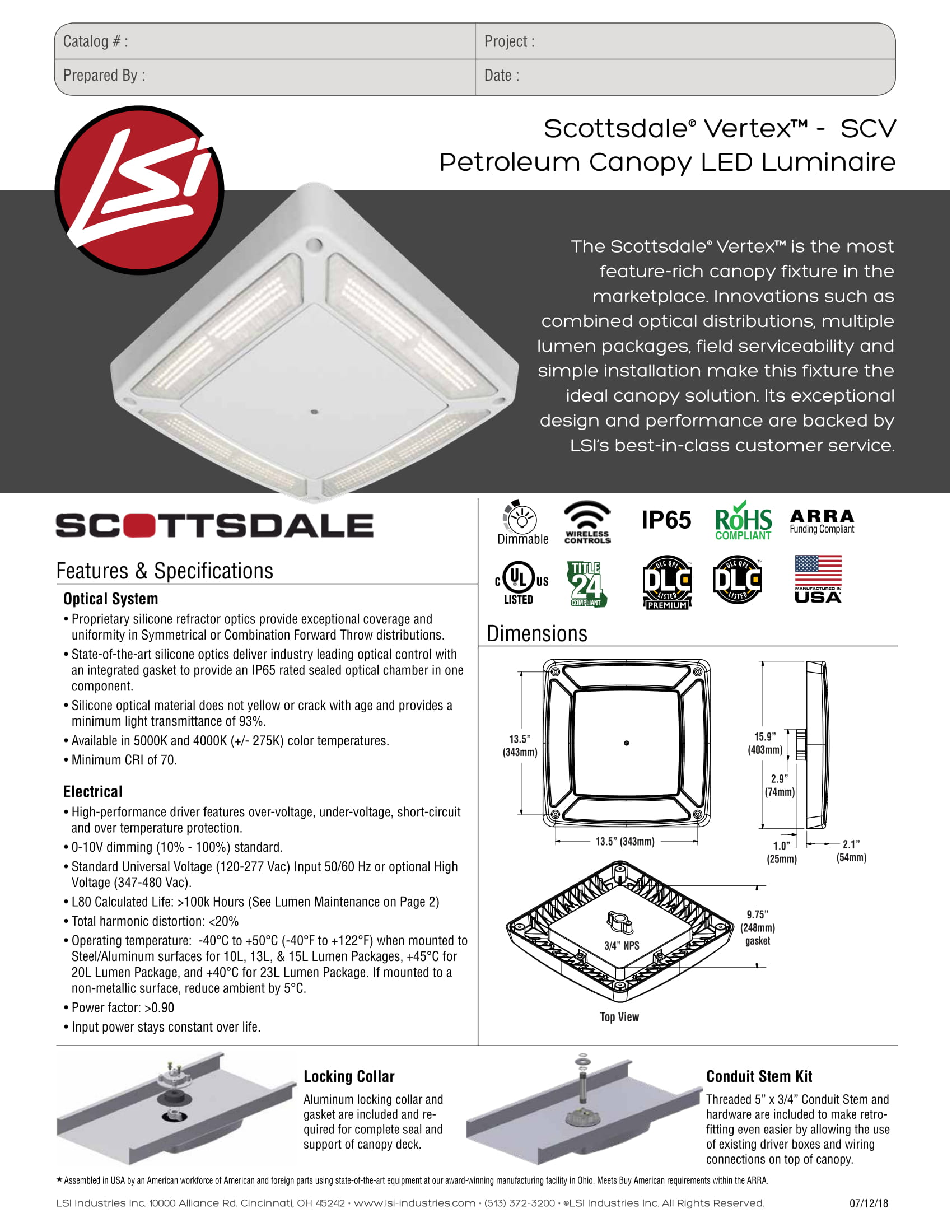

The Scottsdale® Vertex™ is the most feature-rich canopy fixture in the marketplace. Innovations such as combined optical distributions, multiple lumen packages, field serviceability and simple installation make this fixture the ideal canopy solution. Its exceptional design and performance are backed by LSI’s best-in-class customer service.

Optical System

• Proprietary silicone refractor optics provide exceptional coverage and

uniformity in Symmetrical or Combination Forward Throw distributions.

• State-of-the-art silicone optics deliver industry leading optical control with

an integrated gasket to provide an IP65 rated sealed optical chamber in one

component.

• Silicone optical material does not yellow or crack with age and provides a

minimum light transmittance of 93%.

• Available in 5000K and 4000K (+/- 275K) color temperatures.

• Minimum CRI of 70.

Electrical

• High-performance driver features over-voltage, under-voltage, short-circuit

and over temperature protection.

• 0-10V dimming (10% - 100%) standard.

• Standard Universal Voltage (120-277 Vac) Input 50/60 Hz or optional High

Voltage (347-480 Vac).

• L80 Calculated Life: >100k Hours (See Lumen Maintenance on Page 2)

• Total harmonic distortion: <20%

• Operating temperature: -40°C to +50°C (-40°F to +122°F) when mounted to

Steel/Aluminum surfaces for 10L, 13L, & 15L Lumen Packages, +45°C for

20L Lumen Package, and +40°C for 23L Lumen Package. If mounted to a

non-metallic surface, reduce ambient by 5°C

Purpose Built - Flat Designed to Replace the LSI Scottsdale – installs quickly into existing 4” hole without extra cutting, drilling or caulkingAvailable in 2 sizes and lumens up to 21,900

• CRU-  20 ¾” x 20 ¾”  with range of 18,000 – 21,900 lumens
• CRUS- 15 15/16” x 15 15/16”  with range of 10,871 - 13,554 lumens
• One-person Installation - Fastest, easiest installation in the marketplace
• High Performance, Low Cost – most cost-effective LED canopy fixture in the marketplacePerformance Driven
• Highest Lumen Per Dollar – tremendous flexibility in how you light your site
• Choice of Lumen Packages – up to over 21,900 lumens
• Better Light Distribution – more illumination on your dispensers
• Designed for utility and/or DLC approval and rebate participationStunningly Attractive – day and night!
• Extremely Slim Optical Unit –flush look against the canopy

          • During the day the CRU disappears, assuring that attention goes to your marketing               elements, not the canopy fixture
          • Full panel brilliance, properly scaled to your canopy, with no annoying gaps or glaring                 diode point sources
